Products Joysticks ERGO-DigiStick PRO: 6 + 2 functions

ERGO-DigiStick PRO: 6 + 2 functions

Product Code: 2162

This is a 2-in-1 version of ERGO-DigiStick PRO. The electronics from two regular ERGO-DigiStick PRO joysticks are built into one ERGO-DigiStick PRO 6+2-joystick. This means that you can control 6 proportional and 2 on-off functions with one joystick.

Read more
1185,00 €
(828,63 € vat 0%)

Description

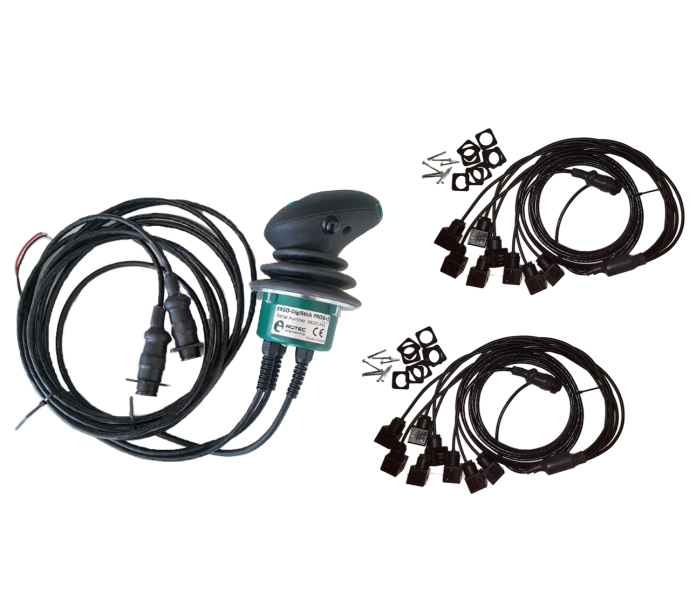

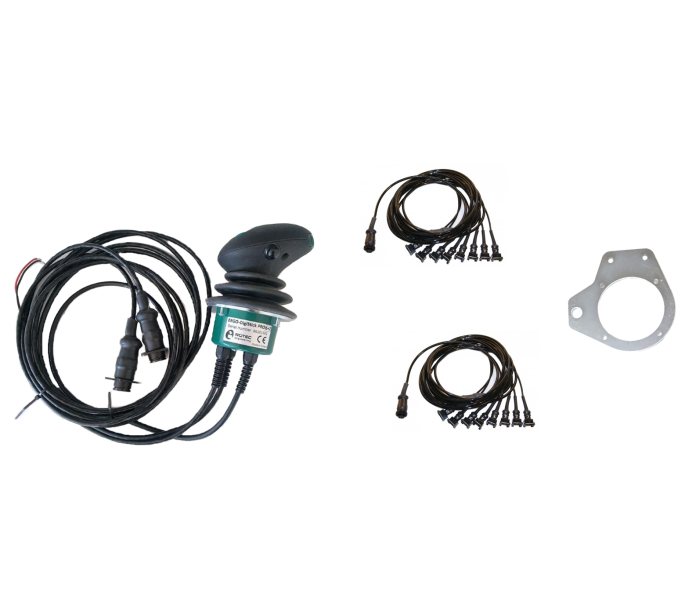

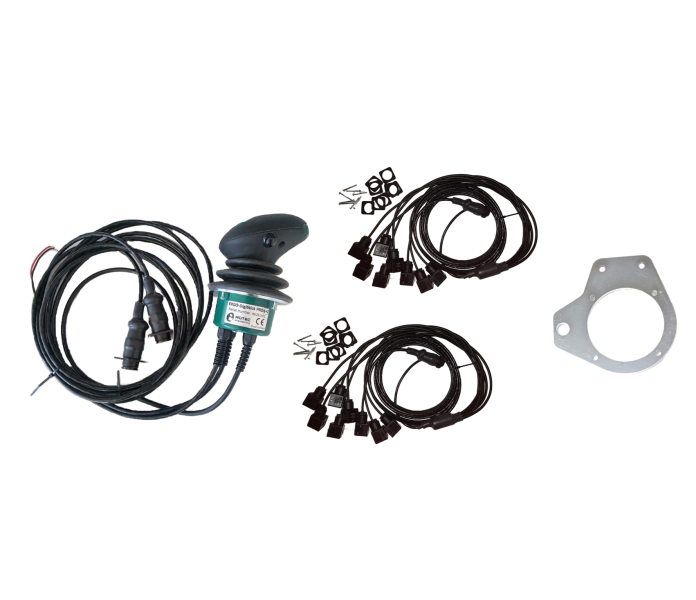

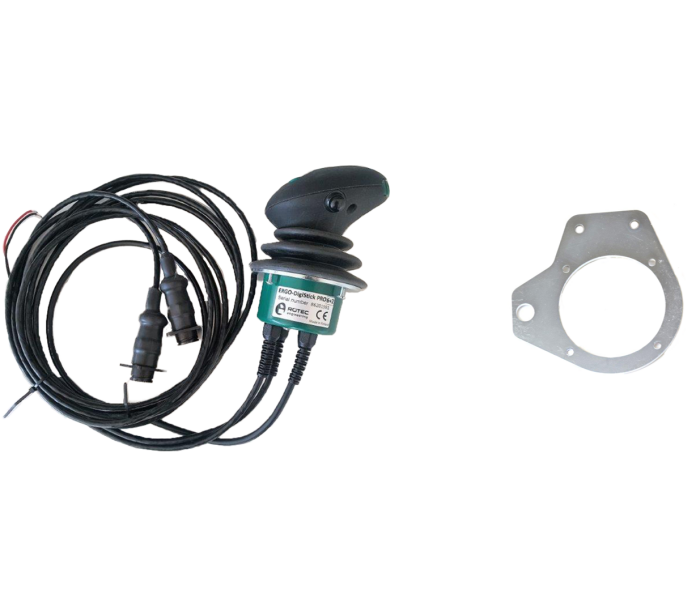

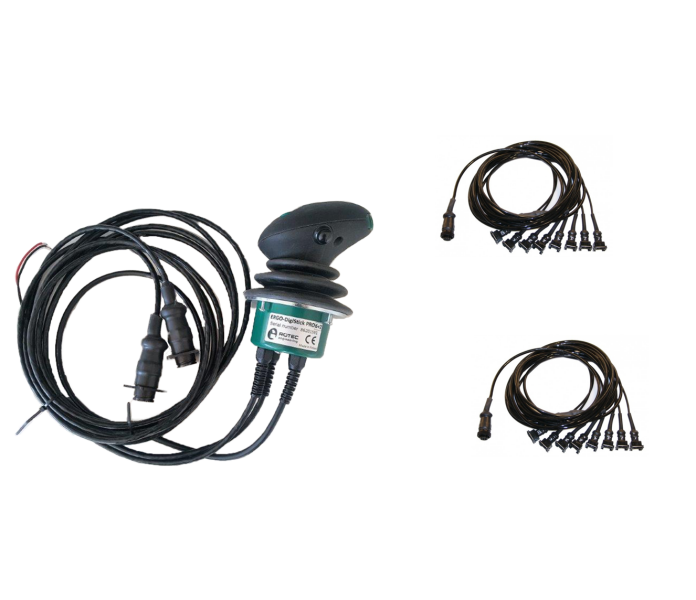

ERGO-DigiStick PRO 6+2 joystick

This is a 2-in-1 version of ERGO-DigiStick PRO. The electronics from two regular ERGO-DigiStick PRO joysticks are built into one ERGO-DigiStick PRO 6+2-joystick. This means that you can control 6 proportional and 2 on-off functions with one joystick.

ERGO-DigiStick controls the solenoids of the hydraulic valves with PWM, i.e. pulse wide modulation. While the voltage remains the same (12 VDC or 24 VDC).  The current (amps) is adjusted with a pulse width of 100 Hz. The pulse width (length in time) is adjusted between 0 and 100%. This is a common way to adjust the servo pressure  that controls the solenoids on the hydraulic valves. Our joystick contains all the necessary electronics.

Power supply: built-in cable (1 m)

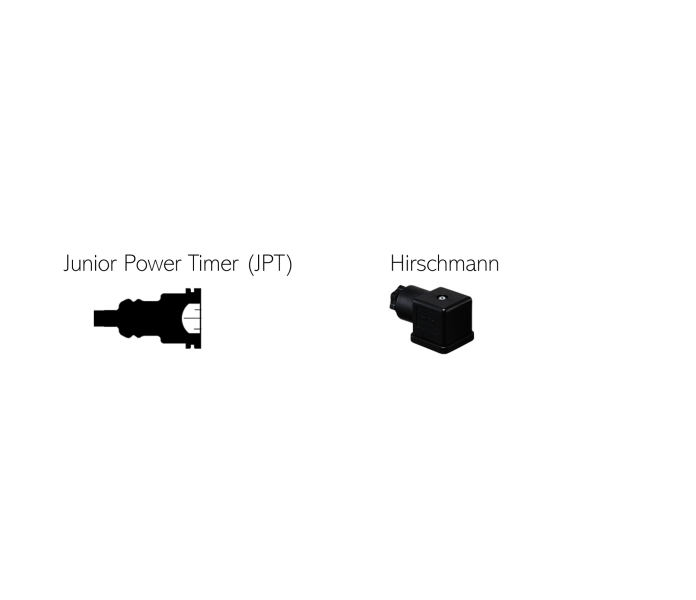

There are two models of the control cable: AMP Junior Power Timer and Hirschmann.

Specifications

Functions: 6 proportional functions + 2 on-off
Producer of the joysticks: Rotec Engineering
Joysticks are produced in: Suomi
